Creating a HaProxy LoadBalancer Cluster on AWS using Ansible as Automation Tool

What is Ansible?

What is “HA-Proxy”?

Pre-Requistes for this creation :

  • IAM role in AWS
  • Pre-Installed Ansible on a system to run playbooks and other stuff –
  • tasks directory is for containing the main file/playbook.
  • cars directory is for storing variables.
  • templates directory is for storing templates written in jinja format.
    There are other folders also which have different uses.
# chmod +x ec2.py
# chmod +x ec2.ini
Initial Image
Changes made
# ./ec2.py --list
2nd line will be commented
# ansible all --list-hosts
# chmod 400 ansibletask3key.pem
# ansible-galaxy init lb
# ansible-galaxy init webserver
# ansible-galaxy role list
  • Firstly, I am configuring webserver role, following are the editing you can do by going to described directories :
tasks/main.yml
-
# tasks file for webserver
- name: install httpd
package:
name: "httpd"
state: present
- name: copy content
copy:
content: "Task3 Successfully completed\n, hello from {{ ansible_hostname }} "
dest: /var/www/html/index.html
notify: restart service
- name: service httpd start
service:
name: "httpd"
state: started
enabled: yes
handlers/main.yml
# handlers file for webserver
- name: "restart service"
service:
name: "httpd"
state: restarted
  • Now, we will be configuring “lb” role, following are the editing you can do by going to described directories:
tasks/main.yml
---
# tasks file for lb
- name: "installing haproxy"
package:
name: "haproxy"
state: present
- template:
src: "haproxy.j2"
dest: "/etc/haproxy/haproxy.cfg"
notify: "restart service"- service:
name: "haproxy"
state: started
enabled: yes
handlers/main.yml
---
# handlers file for LB
- name: "restart service"
service:
name: "haproxy"
state: restarted
templates/
haproxy.j2
---
# handlers file for webserver
- name: "restart service"
service:
name: "httpd"
state: restarted
[root@ansiblecn ansibletask3]# cat lb/templates/haproxy.j2
#---------------------------------------------------------------------
# Example configuration for a possible web application. See the
# full configuration options online.
#
# https://www.haproxy.org/download/1.8/doc/configuration.txt
#
#---------------------------------------------------------------------
#---------------------------------------------------------------------
# Global settings
#---------------------------------------------------------------------
global
# to have these messages end up in /var/log/haproxy.log you will
# need to:
#
# 1) configure syslog to accept network log events. This is done
# by adding the '-r' option to the SYSLOGD_OPTIONS in
# /etc/sysconfig/syslog
#
# 2) configure local2 events to go to the /var/log/haproxy.log
# file. A line like the following can be added to
# /etc/sysconfig/syslog
#
# local2.* /var/log/haproxy.log
#
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 4000
user haproxy
group haproxy
daemon
# turn on stats unix socket
stats socket /var/lib/haproxy/stats
# utilize system-wide crypto-policies
ssl-default-bind-ciphers PROFILE=SYSTEM
ssl-default-server-ciphers PROFILE=SYSTEM
#---------------------------------------------------------------------
# common defaults that all the 'listen' and 'backend' sections will
# use if not designated in their block
#---------------------------------------------------------------------
defaults
mode http
log global
option httplog
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0/8
option redispatch
retries 3
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s
maxconn 3000
#---------------------------------------------------------------------
# main frontend which proxys to the backends
#---------------------------------------------------------------------
frontend main
bind *:2629
acl url_static path_beg -i /static /images /javascript /stylesheets
acl url_static path_end -i .jpg .gif .png .css .js
use_backend static if url_static
default_backend app
#---------------------------------------------------------------------
# static backend for serving up images, stylesheets and such
#---------------------------------------------------------------------
backend static
balance roundrobin
server static 127.0.0.1:4331 check
#---------------------------------------------------------------------
# round robin balancing between the various backends
#---------------------------------------------------------------------
backend app
balance roundrobin
{% for webserver in groups["tag_Name_Ansible_WebServer"] %}
server app {{ webserver }}:80 check
{% endfor %}
# vi vault.yml
# ansible-vault encrypt vault.yml
- hosts: localhost
gather_facts: false
vars_files:
- vault.yml
tasks:
- name: "installing boto"
pip:
name: "boto"
executable: pip3
- name: "installing boto3"
pip:
name: "boto3"
executable: pip3
- name: "creating security group"
ec2_group:
aws_access_key: "{{ ak }}"
aws_secret_key: "{{ sak }}"
name: 'launch-wizard-1'
description: 'sg with rule descriptions'
vpc_id: 'vpc-224d514a'
tags:
Name: "task3-sg"
region: "ap-south-1"
rules:
- proto: tcp
from_port: 22
to_port: 22
cidr_ip: 0.0.0.0/0
rule_desc: allow all on port 22 for ssh
- proto: tcp
cidr_ip: 0.0.0.0/0
ports:
- 80
rule_desc: allow all on port 80 for webserver
- proto: tcp
cidr_ip: 0.0.0.0/0
ports:
- 2629
rule_desc: allow all on port 2629 for loadbalancer
rules_egress:
- proto: all
from_port: 0
to_port: 0
cidr_ip: 0.0.0.0/0

- name: "LoadBalancer"
ec2:
count: 1
image: "ami-0ebc1ac48dfd14136"
instance_type: t2.micro
region: "ap-south-1"
wait: yes
instance_tags:
Name: Ansible_LoadBalancer
group: "launch-wizard-1"
key_name: "ansibletask3key"
state: present
aws_access_key: "{{ ak }}"
aws_secret_key: "{{ sak }}"
- name: "webserver"
ec2:
count: 3
image: "ami-0ebc1ac48dfd14136"
instance_type: t2.micro
region: "ap-south-1"
wait: yes
instance_tags:
Name: Ansible_WebServer
group: "launch-wizard-1"
key_name: "ansibletask3key"
state: present
aws_access_key: "{{ ak }}"
aws_secret_key: "{{ sak }}"
# ansible-playbook ec2.yml --ask-vault-pass

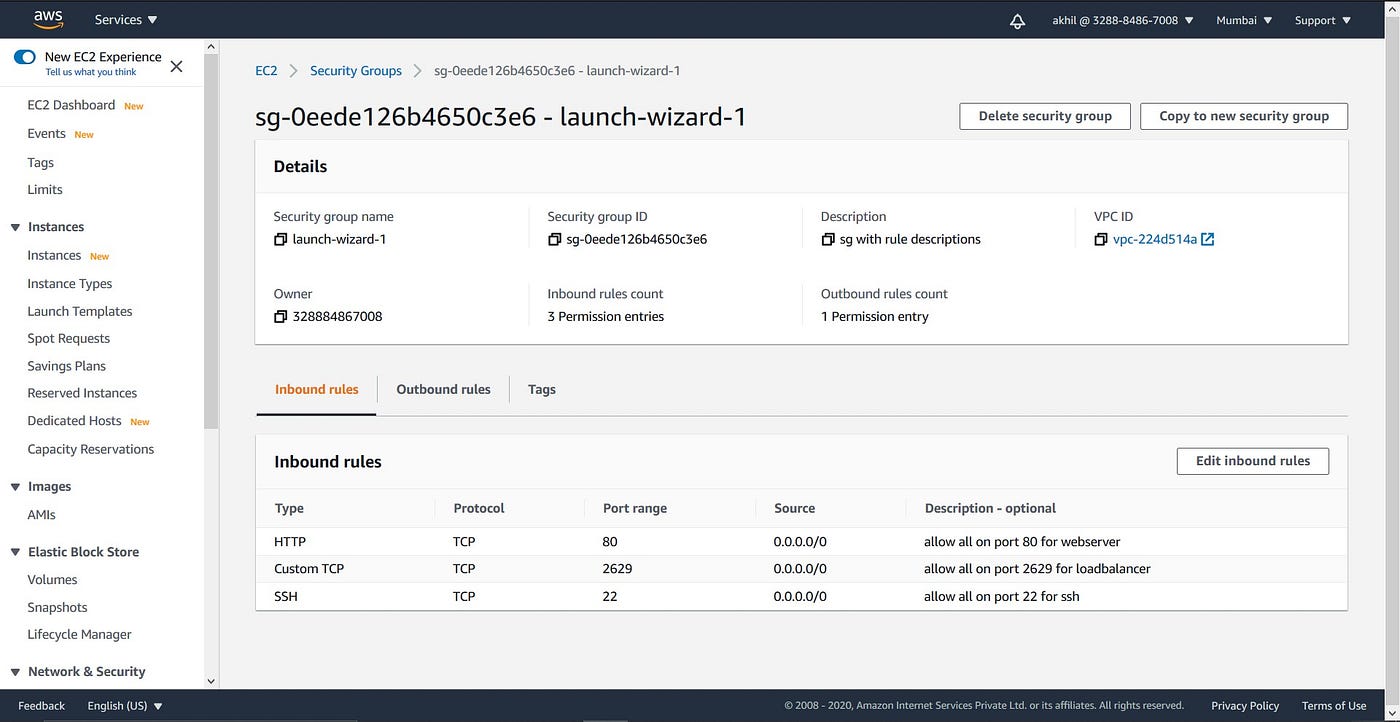

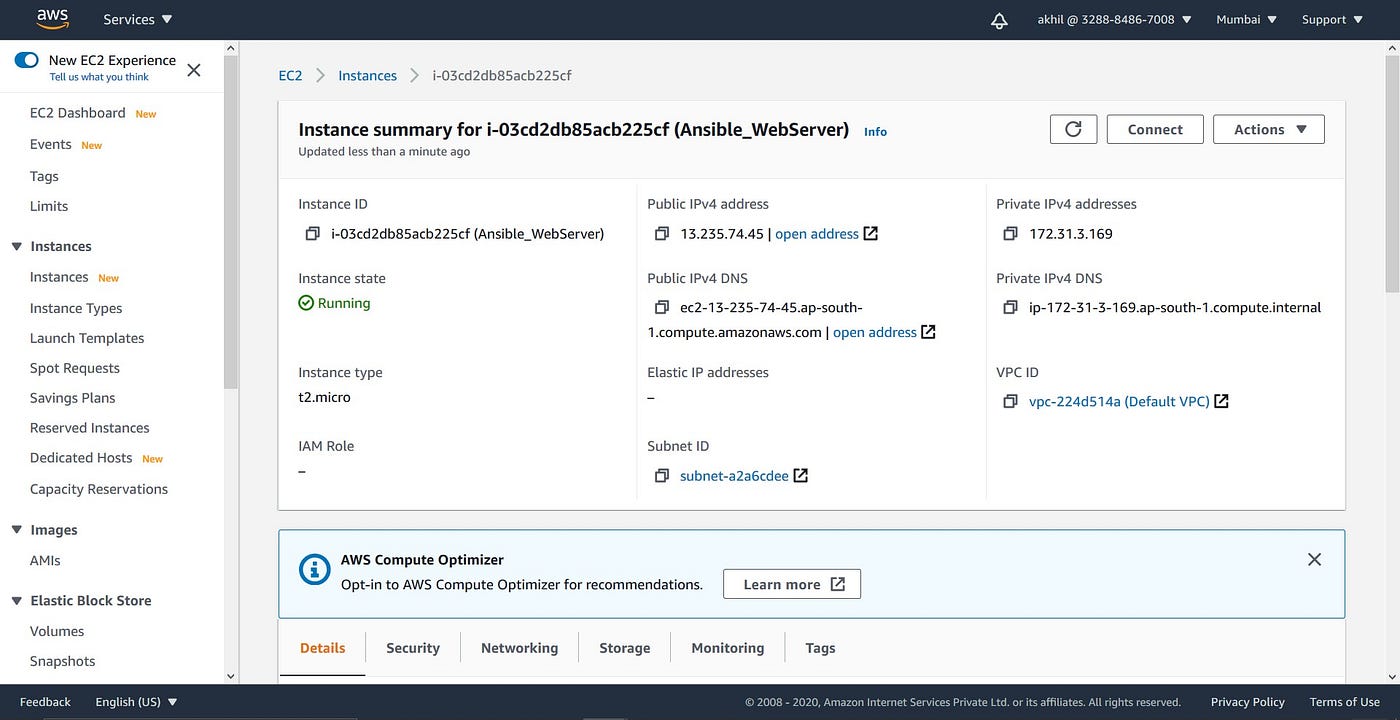

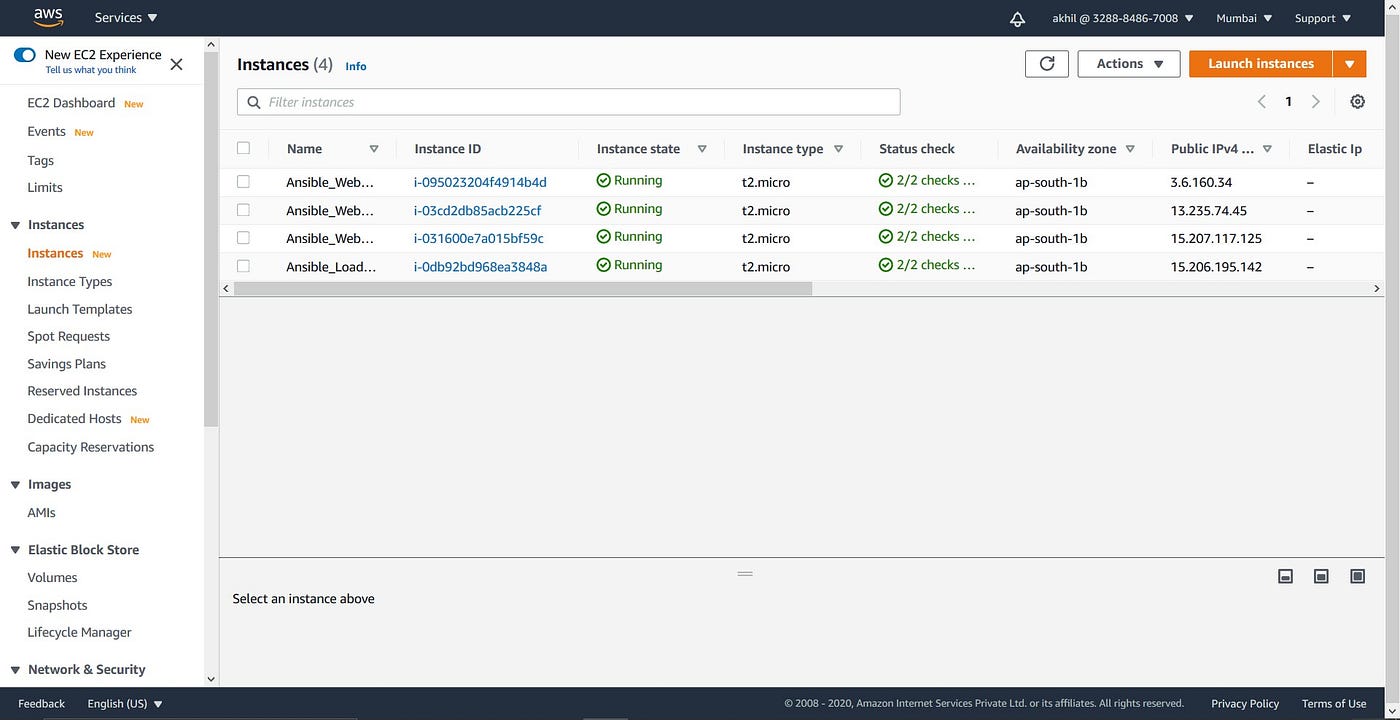

# ansible-playbook lbcluster.yml

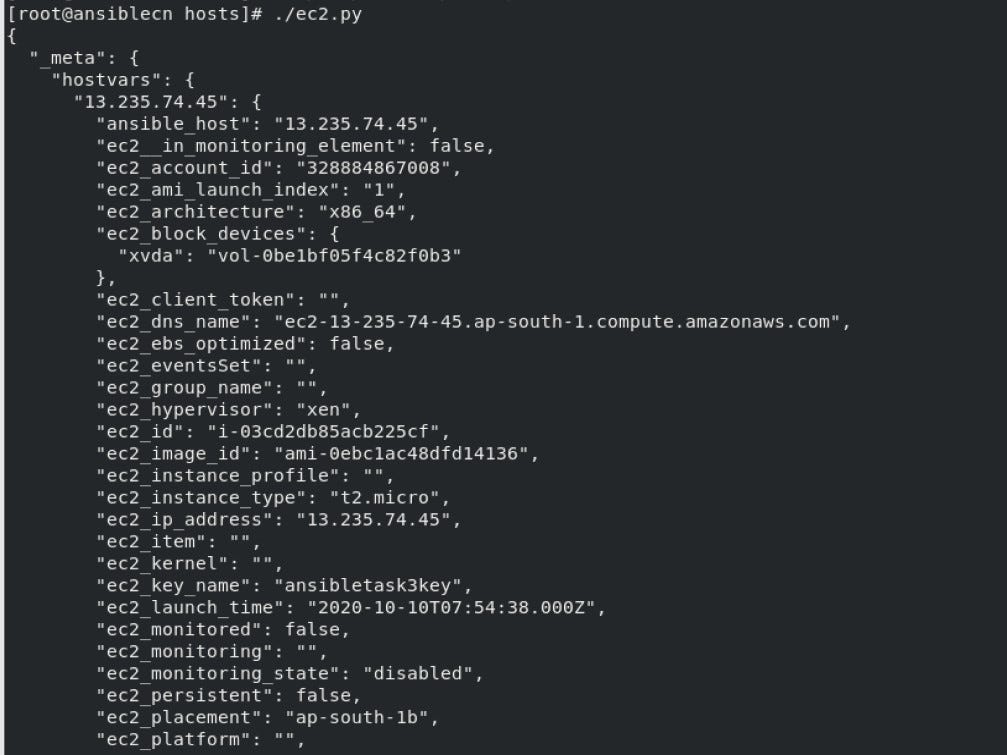

# ./ec2.py --list
In this image, you can see that 3rd and 4th group contains our VM’s IP
